APC BK325I Back-UPS CS 325VA 230V without auto shutdown software 4 IEC outlets (1 surge)
Forsiden
/
.
/
APC BK325I Back-UPS CS 325VA 230V without auto shutdown software 4 IEC outlets (1 surge)
|
|
APC
BK325I Back-UPS CS 325VA
230V without auto shutdown software 4 IEC outlets (1 surge)
Varenummer: BK325I
-
Effekt
325VA
-
Produkt
Eksterne UPS
|
613,-
766,25 inkl. moms
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
Back-UPS CS 325 w/o SW
BK325I
APC Back-UPS CS, 350VA/210W, Input 230V/Output 230V
Includes: User Manual
Output
Output Power Capacity
210 Watts / 350 VA
Max Configurable Power
210 Watts / 350 VA
Nominal Output Voltage
230V

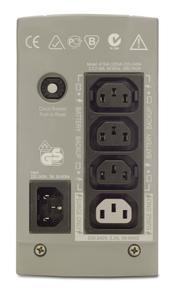

Output Connections
| (1) IEC 320 C13 (Surge Protection) |
|
| (3) IEC 320 C13 (Battery Backup) |
|
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (manual switch)
Input voltage range for main operations
196 - 280V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
6 hour(s)
Replacement battery cartridge
CURK2,
RBC2
Typical Backup Time
at Half Load
23.4 minutes (105 Watts)
Typical Backup Time
at Full Load
6.6 minutes (210 Watts)

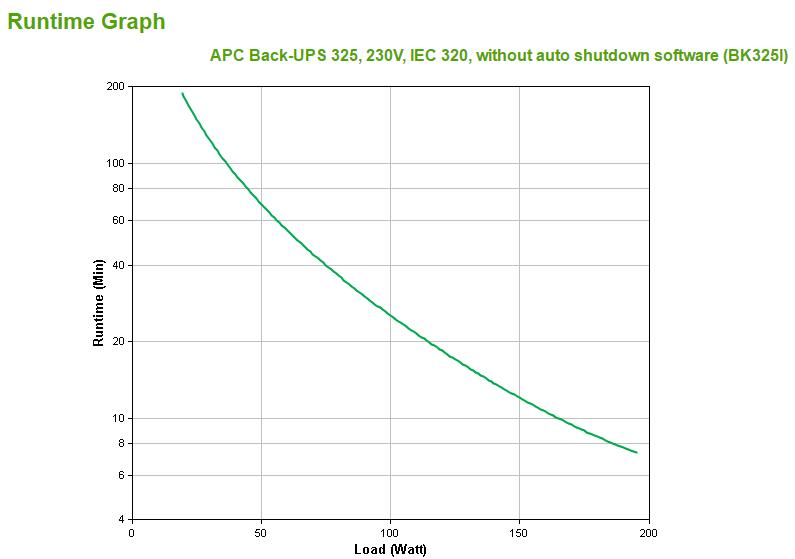

Runtime Chart
Back-UPS CS
Communications & Management

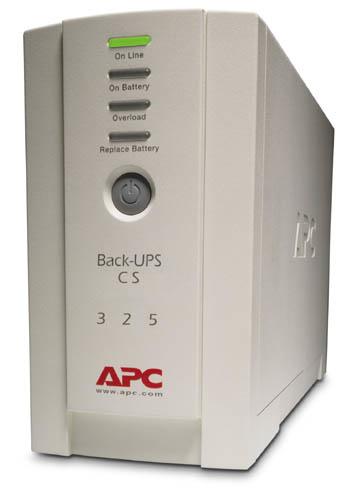

Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
320 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
6.50 inches (165 mm)
Maximum Width
3.60 inches ( 91 mm)
Maximum depth
11.20 inches (284 mm)
Net Weight
12.60 lbs. ( 5.73 kg)
Shipping Weight
14.80 lbs. ( 6.73 kg)
Shipping Height
7.00 inches (178 mm)
Shipping Width
9.50 inches (241 mm)
Shipping Depth
14.50 inches (368 mm)
Environmental
Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Online Thermal Dissipation
19 BTU/hr
Conformance
Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Standard Warranty
2 years repair or replace
| Output strømkapacitet (VA) | 0,325 kVA |
| Udgangseffekt | 210 W |
| Overspænding energivurdering | 320 J |
| AC stikkontakt typer | IEC 60320 |
| Antal udgående IEC stik | 3 |
| SmartSlot | Nej |
| SmartConnect port | Nej |
| Batteriteknologi | Blybatterier (VRLA) |
| Opladningstid for batteri | 6 t |
| Produktfarve | Beige |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -15 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Ledelseskort inkluderet | Nej |
| Certificering | C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE |
| Vægt | 5,73 kg |
| Pakkevægt | 6,73 kg |
| Harmoniseret systemkode (HS) | 85078000 |
| Output-forbindere | IEC 320 C13 |
| Input forbindertype | IEC-320 C14 |
| Dimensioner (BxDxH) | 91 x 284 x 165 mm |
| Nominel udgangsspænding | 230 V |
| Filtreringsbeskrivelse | 5% IEEE |
| Nominel indgangsspænding | 230 V |
| Pakkens dimensioner (BxDxH) | 241 x 368 x 178 mm |
