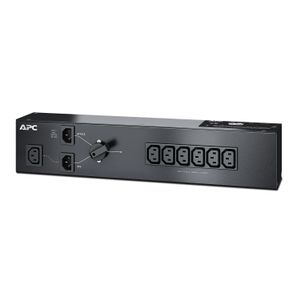

APC Service Bypass Panel/230V 10A
|
|
APC
Service Bypass Panel/230V 10A
Varenummer: SBP1500RMI
|
|
2.606,-
3.257,50 inkl. moms
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
APC SERVICE BYPASS PDU, 230V 10AMP W/ (6) IEC C13
APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C14 , Cord Length: 6.5 feet ( 1.98 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC Jumpers
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 10A
Output Connections: (6) IEC 320 C13
|
| (1) IEC Jumpers |
|
Input
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz
Input Connections: IEC-320 C14
|
Acceptable Input Voltage: 220-240 VAC
Maximum Line Current per phase: 10A
Maximum Input Current per phase: 10A
Load Power Factor Range: 0 to 1
Physical
Shipping Height: 151.00 mm
Shipping Width: 463.00 mm
Shipping Depth: 295.00 mm
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-4500 meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-15000 meters
Conformance
Regulatory Approvals: VDE
Standard Warranty: 2 years repair or replace
Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs
Features
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Certificering | REACH, CE |
| Strøm (maks.) | 10 A |
| Compliance-certifikater | RoHS |
| Vægt | 2 kg |
