ATEN CubiQ CS1764A - KVM / audio-switch - 4 porte
Forsiden
/
.
/
ATEN CubiQ CS1764A - KVM / audio-switch - 4 porte
|
|
ATEN
CubiQ CS1764A - KVM / audio-switch
4 porte
Varenummer: CS1764A
|
|
1.477,-
1.846,25 inkl. moms
Forventes på lager
27-03-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter

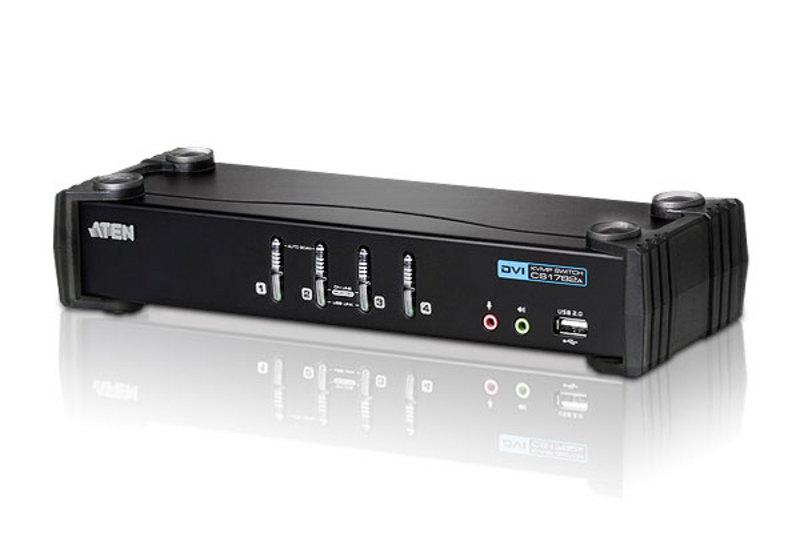

USB 2.0 DVI KVMP™ Switch
CS1764A
The CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI). In addition, the CS1764A comes with ATEN’s new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer. As a KVM switch, it allows users to access two or four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a ‘one computer at a time’ basis
Features:
- One USB console controls four DVI computers and two additional USB 2.0 devices
- Fully compliant built in 2-port USB 2.0 hub.

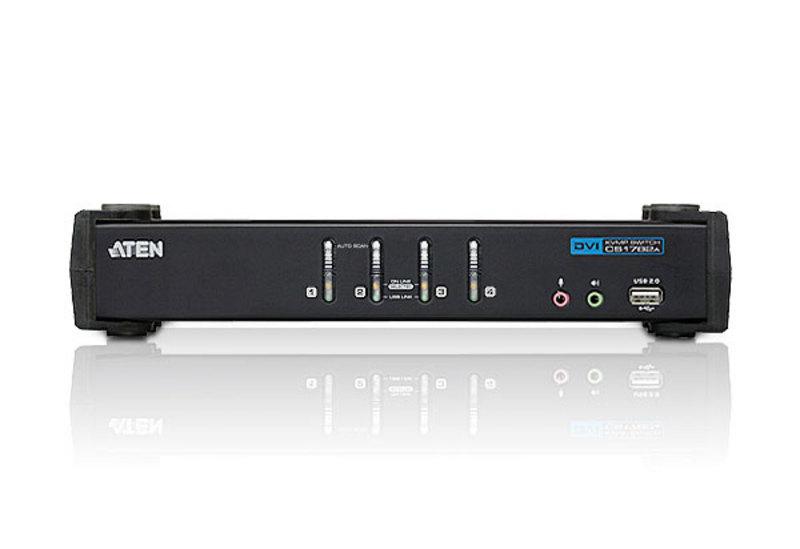

- Computer selection via front panel pushbuttons or hotkeys
- Audio enabled – full bass response 2.1 channel sound
- Multiplatform support – Windows 2000 / XP / Vista, Linux, Mac, and Sun
- Superior video quality – 1920 x 1200, 60Hz; DDC2B
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compliant
- Video DynaSync – stores the console monitor’s EDID (Extended Display Identification Data) to automatically optimize display resolution and refresh rate
- Power on detection – if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass supports multifunction / programmable mice
- Mac/Sun keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- Firmware upgradeable via USB
Specification :
| Connectors (Computer) |
4 |
| Port Selection |
Front Panel Pushbuttons; Hotkey |
| Console Connectors |
| Monitor |
1 x DVI-I [F] |
| Keyboard |
1 x USB Type A rear panel |
| Mouse |
1 x USB Type A rear panel |
| Audio |
2 x Mini Stereo Jack |
| Microphone |
2 x Mini Stereo Jack |

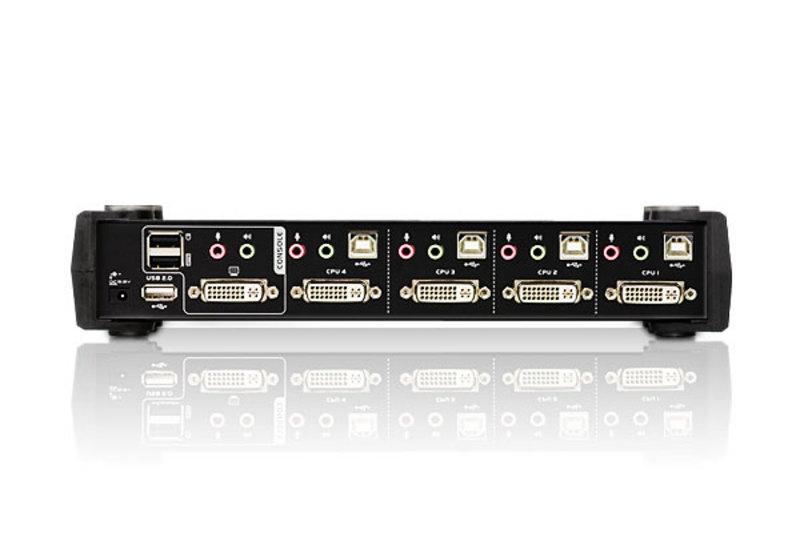

| KVM Side Connections |
| Monitor |
4 x DVI-I [F] |
| keyboard & mouse |
4 x USB Type B [F] |
| Audio |
4 x Mini Stereo Jack [F] |
| Microphone |
4 x Mini Stereo Jack [F] |
| Power Connections |
1 x DC Jack [F] |
| USB Specification |
2 x USB 2.0 type A [F] |
| Switches |
| Port Selection |
4 x Pushbutton |
| LEDs |
| Selected |
4 x (Orange) |
| USB Peripherals |
4 x (Green) |
| Emulation |
| Keyboard |
USB |
| Mouse |
USB |
| Video |
| DVI-D(Single Link) |
1920 x 1200 @ 60Hz; DDC2B |
| Scan Interval |
1–99 secs. (5 secs. default) |
| Power Consumption |
10.07W / 34.4 Btu/hour |
| Power |
| Voltage |
5.3 VDc |
| Amps |
2A [max] |
| Power Adaptor Part # |
| for North America |
|
| for Continental Europe |
|
| for UK |
|
| Environment |
| Operation Temperature |
32 - 122 F |
| Storage Temperature |
-4 - 140 F |
| Humidity |
0–80% RH, Non-condensing |
| Physical Properties |
| Case Qty |
5 |
| Case Weight |
15.7 lb. |
| Case Dimension |
20x 14x 9.5 in. |
| Unit Dimension |
10.6x 3.4x 2.2 in. |
| Unit Package Dimensions |
13x 4x 8.5 in. |
| Unit Weight |
2.2 lb. |
| Unit Weight with package |
3.2 lb. |
Requirements:
Console
- A DVI compatible monitor
- A USB style mouse
- A USB style keyboard
- Microphone and speakers (optional)
Computers
- A DVI port
- Type A USB port
- Audio ports (optional)
Package Content:
- 1 CS1764
- 4 Custom DVI-D cables ( 6 ft)
- 1 Power adapter
- 1 User manual
- 1 Quick start guide
| Antal kontrollerede computere | 4 |
| Tastatur porttype | USB |
| Mus porttype | USB |
| Video porttype | DVI-I |
| Antal DVI-I-porte | 5 |
| Konsol porte | 3ˌ5 mm hovedtelefon, 3.5mm mic, DVI-I, USB A |
| Antal konsol USB porte | 2 |
| USB stik | Ja |
| Antal USB 2.0-porte | 4 |
| USB-stik type | USB Type-A |
| USB version | 2.0 |
| Lydforbindelse | Ja |
| Udgange til hovedtelefoner | 5 |
| Antal mikrofon-indgange | 5 |
| DC-in-stik | Ja |
| HD-type | WUXGA |
| Maksimal opløsning | 1920 x 1200 pixel |
| Video båndbredde | 60 Hz |
| Skanningsinterval | 1,99 sek./side |
| DDC2B support | Ja |
| HDCP | Ja |
| Strøm ved registrering | Ja |
| Firmware kan opgraderes | Ja |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | USB, Ja |
| Trykknap | Ja |
| Genvejstaster | Ja |
| Indbygget skærm | Nej |
| Skærmvisning (OSD) | Nej |
| Strømkilde | DC |
| Indgangsspænding | 5.3 V |
| Strømforbrug (typisk) | 10,7 W |
| Understøttede Windows-operativsystemer | Ja |
| Understøttede Linux-operativsystemer | Ja |
| Understøttede Mac-operativsystemer | Ja |
| Andre understøttede operativsystemer | Ja |
| Compliance-certifikater | RoHS |
| Driftstemperatur (T-T) | 0 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
| Bredde | 270 mm |
| Dybde | 88 mm |
| Højde | 55,5 mm |
| Vægt | 940 g |
| Kabler inkluderet | DC, KVM |
| Hurtig installationsvejledning | Ja |
| Brugervejledning | Ja |
| Harmoniseret systemkode (HS) | 85176200 |
