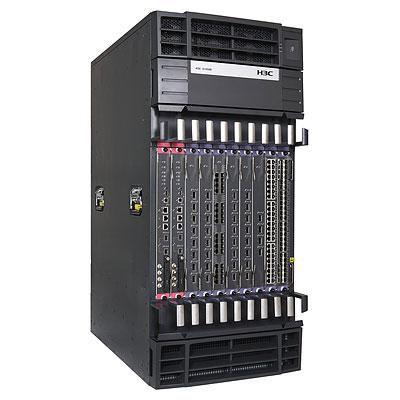

Hewlett Packard Enterprise 12508 AC Switch Chassis

Forsiden / Kommunikation / Switche / Hewlett Packard Enterprise 12508 AC Switch Chassis

Hewlett Packard Enterprise 12508 AC Switch Chassis

Varenummer: JF431C

Produkt Ethernet
Porte 0
Hastighed 100Gbps

2.547,-
3.183,75 inkl. moms

Ikke på lager

Kontakt mig, når varen er på lager

Antal:

The SDN-enabled HP 12500 Switch Series offers industry leading scalability for enterprise data center cores giving you significantly higher throughput with 24.3 Tbps switching capacity. Along with scalability you get high performance 10/40/100GbE line cards.

With high scalability and performance, the new core switch series extends the value of your installed base and also delivers high availability and resilience with redundant fabrics, power supplies and fan trays. Customers will find great value in Comware 7 advanced features, including IRF, MDC, SPB and EVI.

Overholdelse af branchestandarder
Elektromagnetisk kompatibilitet	VCCI Class A; EN 55022 Class A; VCCI V-3/2000.04; ICES-003 Class A; AS/NZS CISPR 22 Class A; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Immunitetsstandard	ETSI EN 300 386 V1.3.3; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-2; IEC61000-4-2; EN 61000-4-3; IEC61000-4-3; EN 61000-4-4; IEC61000-4-4; EN 61000-4-5; IEC61000-4-5; EN 61000-4-6; IEC61000-4-6; IEC 61000-4-8; EN61000-4-8; EN 61000-4-11; IEC61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Adaptertilslutning
Varmeafgivelse	14587 BTU/hr (15389.29 kJ/hr)
Routing/switching kapacitet	6120 Gb/s
Muligheder for stabling	IRF with four chassis
Administrationsfunktioner	IMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232c); SNMP manager; Telnet; RMON1; FTP; In-line and out-of-band; Terminal interface (serial RS-232c); Modem interface
BGP	RFC 1657 Definitions of Managed Objects for BGPv4; RFC 1771 BGPv4; RFC 1772 Application of the BGP; RFC 1773 Experience with the BGP-4 Protocol; RFC 1774 BGP-4 Protocol Analysis; RFC 1997 BGP Communities Attribute; RFC 1998 PPP Gandalf FZA Compression Protocol; RFC 2385 BGP Session Protection via TCP MD5; RFC 2439 BGP Route Flap Damping; RFC 2796 BGP Route Reflection; RFC 2842 Capability Advertisement with BGP-4; RFC 2858 BGP-4 Multi-Protocol Extensions; RFC 2918 Route Refresh Capability
Afvisning af servicebeskyttelse	RFC 2267 Network Ingress Filtering; Automatic Filtering of well known Denial of Service Packets; CPU DoS Protection; Rate Limiting by ACLs
Enhedsstyring	RFC 1155 Structure and Mgmt Information (SMIv1); RFC 1157 SNMPv1/v2c; RFC 1305 NTPv3; RFC 1945 Hypertext Transfer Protocol -- HTTP/1.0; RFC 2452 MIB for TCP6; RFC 2454 MIB for UDP6; RFC 2573 (SNMPv3 Applications); RFC 2578-2580 SMIv2; RFC 2579 (SMIv2 Text Conventions); RFC 2580 (SMIv2 Conformance); RFC 2819 (RMON groups Alarm, Event, History and Statistics only); RFC 2819 RMON; RFC 3417 (SNMP Transport Mappings); SNMP v3 and RMON RFC support; SSHv1/SSHv2 Secure Shell; TACACS/TACACS+
Generelle protokoller	IEEE 802.1ad Q-in-Q; IEEE 802.1ag Service Layer OAM; IEEE 802.1ah Provider Backbone Bridges; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.1X PAE; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad Link Aggregation (LAG); IEEE 802.3ae 10-Gigabit Ethernet; IEEE 802.3ah Ethernet in First Mile over Point to Point Fiber - EFMF; IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-X; IEEE 802.3x Flow Control; IEEE 802.3z 1000BASE-X; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 903 RARP; RFC 951 BOOTP; RFC 959 File Transfer Protocol (FTP); RFC 1027 Proxy ARP; RFC 1042 IP Datagrams; RFC 1350 TFTP Protocol (revision 2); RFC 1519 CIDR; RFC 1542 BOOTP Extensions; RFC 1812 IPv4 Routing; RFC 2131 DHCP; RFC 2338 VRRP; RFC 2784 Generic Routing Encapsulation (GRE); RFC 2865 Remote Authentication Dial In User Service (RADIUS)
IKEv1	RFC 2865 - Remote Authentication Dial In User Service (RADIUS)
IP Multicast	RFC 1112 IGMP; RFC 2236 IGMPv2; RFC 2283 Multiprotocol Extensions for BGP-4; RFC 2362 PIM Sparse Mode; RFC 2934 Protocol Independent Multicast MIB for IPv4; RFC 3376 IGMPv3; RFC 3618 Multicast Source Discovery Protocol (MSDP); RFC 4601 PIM Sparse Mode
IPv6	RFC 1350 TFTP; RFC 1981 IPv6 Path MTU Discovery; RFC 2080 RIPng for IPv6; RFC 2460 IPv6 Specification; RFC 2461 IPv6 Neighbor Discovery; RFC 2462 IPv6 Stateless Address Auto-configuration; RFC 2463 ICMPv6; RFC 2473 Generic Packet Tunneling in IPv6; RFC 2475 IPv6 DiffServ Architecture; RFC 2529 Transmission of IPv6 Packets over IPv4; RFC 2710 Multicast Listener Discovery (MLD) for IPv6; RFC 2740 OSPFv3 for IPv6; RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers; RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only); RFC 3315 DHCPv6 (client only); RFC 3484 Default Address Selection for IPv6 ; RFC 3513 IPv6 Addressing Architecture; RFC 3587 IPv6 Global Unicast Address Format; RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4254 SSHv6 Connection; RFC 4541 IGMP & MLD Snooping Switch; RFC 4862 IPv6 Stateless Address Auto-configuration
MIB'er	IEEE8023-LAG-MIB; RFC 1213 MIB II; RFC 1229 Interface MIB Extensions; RFC 1286 Bridge MIB; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 1643 Ethernet MIB; RFC 1657 BGP-4 MIB; RFC 1724 RIPv2 MIB; RFC 1757 Remote Network Monitoring MIB; RFC 1850 OSPFv2 MIB; RFC 2011 SNMPv2 MIB for IP; RFC 2012 SNMPv2 MIB for TCP; RFC 2013 SNMPv2 MIB for UDP; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2233 Interfaces MIB; RFC 2273 SNMP-NOTIFICATION-MIB; RFC 2452 IPV6-TCP-MIB; RFC 2454 IPV6-UDP-MIB; RFC 2465 IPv6 MIB; RFC 2466 ICMPv6 MIB; RFC 2571 SNMP Framework MIB; RFC 2572 SNMP-MPD MIB; RFC 2573 SNMP-Target MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2787 VRRP MIB; RFC 2819 RMON MIB; RFC 2863 The Interfaces Group MIB; RFC 2925 Ping MIB; RFC 2932IP (Multicast Routing MIB); RFC 2933 IGMP MIB; RFC 3273 HC-RMON MIB; RFC 3414 SNMP-User based-SM MIB; RFC 3415 SNMP-View based-ACM MIB; RFC 3418 MIB for SNMPv3; RFC 3621 Power Ethernet MIB; RFC 3813 MPLS LSR MIB; RFC 3814 MPLS FTN MIB; RFC 3815 MPLS LDP MIB; RFC 3826 AES for SNMP's USM MIB; RFC 4133 Entity MIB (Version 3); LLDP-EXT-DOT1-MIB; LLDP-EXT-DOT3-MIB; LLDP-MIB
Netværksadministration	IEEE 802.1AB Link Layer Discovery Protocol (LLDP); IEEE 802.1D (STP); RFC 1155 Structure of Management Information; RFC 1157 SNMPv1; RFC 1215 SNMP Generic traps; RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 1905 SNMPv2 Protocol Operations; RFC 2211 Controlled-Load Network; RFC 2272 SNMPv3 Management Protocol; RFC 2273 SNMPv3 Applications; RFC 2274 USM for SNMPv3; RFC 2571 SNMP Management Frameworks; RFC 2572 SNMPv3 Message Processing; RFC 2573 SNMPv3 Applications; RFC 2576 Coexistence between SNMP versions; RFC 2578 SMIv2; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3415 SNMPv3 View-based Access Control Model VACM); ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3
OSPF	RFC 1245 OSPF protocol analysis; RFC 1246 Experience with OSPF; RFC 1587 OSPF NSSA; RFC 1765 OSPF Database Overflow; RFC 1850 OSPFv2 Management Information Base (MIB), traps; RFC 2328 OSPFv2; RFC 2370 OSPF Opaque LSA Option; RFC 3101 OSPF NSSA; RFC 3623 Graceful OSPF Restart
PKI	RFC 2205 Resource ReSerVation Protocol (RSVP) - Version 1 Functional Specification; RFC 2209 Resource ReSerVation Protocol (RSVP); RFC 2702 Requirements for Traffic Engineering Over MPLS; RFC 2858 Multiprotocol Extensions for BGP-4; RFC 3031 Multiprotocol Label Switching Architecture; RFC 3032 MPLS Label Stack Encoding; RFC 3036 LDP Specification; RFC 3107 Carrying Label Information in BGP-4; RFC 3209 RSVP-TE: Extensions to RSVP for LSP Tunnels; RFC 3479 Fault Tolerance for the Label Distribution Protocol (LDP); RFC 3487 Graceful Restart Mechanism for LDP; RFC 4090 Fast Reroute Extensions to RSVP-TE for LSP Tunnels; RFC 4364 BGP/MPLS IP Virtual Private Networks (VPNs); RFC 4379 Detecting Multi-Protocol Label Switched (MPLS) Data Plane Failures; RFC 4447 Pseudowire Setup and Maintenance Using LDP; RFC 4448 Encapsulation Methods for Transport of Ethernet over MPLS Networks; RFC 4664 Framework for Layer 2 Virtual Private Networks; RFC 4665 Service Requirements for Layer 2 Provider Provisioned Virtual Private Networks; RFC 4761 Virtual Private LAN Service (VPLS) Using BGP for Auto-Discovery and Signaling; RFC 4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling
QoS/Cos	IEEE 802.1P (CoS); RFC 2212 Guaranteed Quality of Service; RFC 2474 DS Field in the IPv4 and IPv6 Headers; RFC 2475 DiffServ Architecture; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2697 A Single Rate Three Color Marker; RFC 2698 A Two Rate Three Color Marker; Bi-directional Rate Shaping
Sikkerhed	IEEE 802.1X Port Based Network Access Control; RFC 1321 The MD5 Message-Digest Algorithm; RFC 2082 RIP-2 MD5 Authentication; RFC 2104 Keyed-Hashing for Message Authentication; RFC 2716 PPP EAP TLS Authentication Protocol; RFC 2865 RADIUS Authentication; RFC 2866 RADIUS Accounting; RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support; RFC 2868 RADIUS Attributes for Tunnel Protocol Support; RFC 2869 RADIUS Extensions; RFC 3567 Intermediate System (IS) to IS Cryptographic Authentication; Access Control Lists (ACLs); Guest VLAN for 802.1x; MAC Authentication; SSHv2 Secure Shell; Web Authentication
Overførselshastighed	3840 Mpps
Porte	8 open module slots; Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports or 32 100GbE ports, or a combination; Included
Lydtryk (standby)
Driftstemperaturinterval	32 to 104°F
Juridisk ansvarsfraskrivelse
Billeder - juridisk ansvarsfraskrivelse	Product image may differ from actual product
Produktmål (med valgfrit efterbehandlingsudstyr, metrisk)
Mindste produktmål (B x D x H)	44.2 x 73.99 x 97.51 cm
Mindste produktmål (B x D x H)	17.4 x 29.13 x 38.39 in
Kassens vægt (kasse eller masterkasse)
Vægt	95 kg
Kassens indhold
Kassens indhold	(1) HP 12508 AC Switch Chassis
Processorstik
Hukommelse og processor	PowerPC @ 400 MHz; 128 MB RAM
Batteritype
Strømforbrug	4750 W (maximum)
Indgangsfrekvens	50/60 Hz
Indgangsspænding	100 - 120 / 200 - 240 VAC
Afbrydergrænse
Montering	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet
Formfaktor
Formfaktor	22U height
