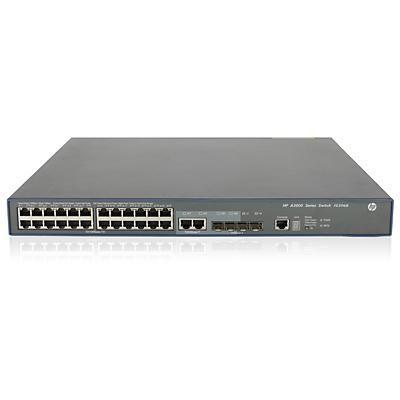

Hewlett Packard Enterprise 3600-24-PoE+ v2 SI Switch

Forsiden / Kommunikation / Switche / Hewlett Packard Enterprise 3600-24-PoE+ v2 SI Switch

Hewlett Packard Enterprise 3600-24-PoE+ v2 SI Switch

Varenummer: JG306B

Produkt Administreret
Porte 24
Hastighed 1Gbps

483,-
603,75 inkl. moms

Ikke på lager

Kontakt mig, når varen er på lager

Antal:

The HP 3600 SI Switch Series delivers intelligent, resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Fast Ethernet and PoE/PoE+ switches, with features that can accommodate large enterprise and SMB applications. Secure, resilient connectivity, as well as the latest traffic-prioritization technologies, enhance converged networks. The switches are designed for improved flexibility and scalability.

Quality of Service (QoS)

• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

Management

• Friendly port names: allows assignment of descriptive names to ports

Connectivity

• IPv6: Telnet: for allowing CLI access via IPv6. SNMP: for IPv6 switch management. DNS: for IPv6 host management. DHCP: for auto IPv6 address configuration of a switch.

Performance

• Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed switching with up to 13.1 million pps throughput

Resiliency and high availability

• Separate data and control paths: keep control separated from services and keeps service processing isolated; increases security and performance

Manageability

• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Layer 2 switching

• 16/32K MAC address table: provides access to many Layer 2 devices

Overholdelse af branchestandarder
Elektromagnetisk kompatibilitet	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Sikkerhed	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Adaptertilslutning
Varmeafgivelse	143 BTU/hr (150.86 kJ/hr)
Routing/switching kapacitet	12.8 Gbps
Muligheder for stabling	IRF; 9 switches
Administrationsfunktioner	IMC - Intelligent Management Center; Command-line interface; Web browser; SNMP manager
Enhedsstyring	RFC 1157 SNMPv1/v2c; RFC 1901-1907 SNMPv2c, SMIv2 and Revised MIB-II; RFC 2573 (SNMPv3 Applications); RFC 2578-2580 SMIv2; RFC 2819 (RMON groups Alarm, Event, History and Statistics only); RFC 3410 (Management Framework); RFC 3416 (SNMP Protocol Operations v2); RFC 3417 (SNMP Transport Mappings); HTML and telnet management; Multiple Configuration Files; SNMP v3 and RMON RFC support; SSHv1/SSHv2 Secure Shell
Generelle protokoller	"IEEE 802.1ad Q-in-Q; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s (MSTP); IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.1X PAE; IEEE 802.3 Type 10BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-X; IEEE 802.3x Flow Control; IEEE 802.3z 1000BASE-X; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 1058 RIPv1; RFC 1213 Management Information Base for Network Management of TCP/IP-based internets; RFC 1812 IPv4 Routing; RFC 2131 DHCP; RFC 2236 IGMP Snooping; RFC 2338 VRRP; RFC 2453 RIPv2; RFC 2644 Directed Broadcast Control; RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types ; RFC 3410 Applicability Statements for SNMP; RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3); RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP); RFC 3416 Protocol Operations for SNMP; RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)"
IPv6	RFC 1881 IPv6 Address Allocation Management (v2 models only); RFC 1887 IPv6 Unicast Address Allocation Architecture (v2 models only); RFC 1981 IPv6 Path MTU Discovery (v2 models only); RFC 2080 RIPng for IPv6 (v2 models only); RFC 2373 IPv6 Addressing Architecture (v2 models only); RFC 2375 IPv6 Multicast Address Assignments (v2 models only); RFC 2460 IPv6 Specification (v2 models only); RFC 2461 IPv6 Neighbor Discovery (v2 models only); RFC 2462 IPv6 Stateless Address Auto-configuration (v2 models only); RFC 2463 ICMPv6 (v2 models only); RFC 2464 Transmission of IPv6 over Ethernet Networks (v2 models only); RFC 2475 IPv6 DiffServ Architecture (v2 models only); RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers (v2 models only); RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) (v2 models only); RFC 2925 Remote Operations MIB (Ping only) (v2 models only); RFC 3056 Connection of IPv6 Domains via IPv4 Clouds (v2 models only); RFC 3162 RADIUS and IPv6 (v2 models only); RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses (v2 models only); RFC 3307 IPv6 Multicast Address Allocation (v2 models only); RFC 3315 DHCPv6 (client and relay) (v2 models only); RFC 3484 Default Address Selection for IPv6 (v2 models only); RFC 3493 Basic Socket Interface Extensions for IPv6 (v2 models only); RFC 3513 IPv6 Addressing Architecture (v2 models only); RFC 3542 Advanced Sockets API for IPv6 (v2 models only); RFC 3587 IPv6 Global Unicast Address Format (v2 models only); RFC 3596 DNS Extension for IPv6 (v2 models only); RFC 4113 MIB for UDP (v2 models only); RFC 4443 ICMPv6 (v2 models only)
MIB'er	RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1757 Remote Network Monitoring MIB; RFC 1907 SNMPv2 MIB; RFC 2233 Interface MIB; RFC 2571 SNMP Framework MIB; RFC 2572 SNMP-MPD MIB; RFC 2573 SNMP-Notification MIB; RFC 2573 SNMP-Target MIB; RFC 2574 SNMP USM MIB; RFC 2618 RADIUS Authentication Client MIB; RFC 2620 RADIUS Accounting Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2819 RMON MIB; RFC 3414 SNMP-User based-SM MIB; RFC 3415 SNMP-View based-ACM MIB
Netværksadministration	IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1157 SNMPv1; RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 1901 SNMPv2 Introduction; RFC 1902 Structure of Management Information for Version 2 of the Simple Network Management Protocol (SNMPv2) ; RFC 1903 SNMPv2 Textual Conventions; RFC 1904 SNMPv2 Conformance; RFC 1905 SNMPv2 Protocol Operations; RFC 1906 SNMPv2 Transport Mappings; RFC 2570 SNMPv3 Overview; RFC 2571 An Architecture for Describing SNMP Management Frameworks; RFC 2572 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) ; RFC 2573 SNMP Applications; RFC 2574 SNMPv3 User-based Security Model (USM); RFC 2575 SNMPv3 View-based Access Control Model (VACM); RFC 2578 Structure of Management Information Version 2 (SMIv2); RFC 2579 Textual Conventions for SMIv2; RFC 2580 Conformance Statements for SMIv2; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3410 Introduction to Version 3 of the Internet-standard Network Management Framework ; RFC 3414 SNMPv3 User-based Security Model (USM); RFC 3415 SNMPv3 View-based Access Control Model VACM); ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3
Reaktionstid	100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
Overførselshastighed	up to 9.5 Mpps
Porte	(24) RJ-45 autosensing 10/100 PoE+ ports; (2) SFP dual-personality 10/100/1000 ports; (2) SFP 1000 Mbps ports
Lydtryk (standby)
Luftfugtighed ved drift	5 to 95% (noncondensing)
Luftfugtighed ved opbevaring	5 to 95% (noncondensing)
Driftstemperaturinterval	0 to 50°C
Temperaturområde ved opbevaring	-40 to 70°C
Juridisk ansvarsfraskrivelse
Billeder - juridisk ansvarsfraskrivelse	Product image may differ from actual product
Produktmål (med valgfrit efterbehandlingsudstyr, metrisk)
Mindste produktmål (B x D x H)	44 x 42 x 4.36 cm
Kassens vægt (kasse eller masterkasse)
Vægt	10 kg
Kassens indhold
Kassens indhold	(1) HP 3600-24-PoE+ v2 SI Switch
Garantimuligheder
Garanti	Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.; Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase; refer to www.hp.com/networking/warrantysummary.; Software releases: for details on the software releases available with your product purchase; refer to www.hp.com/networking/warrantysummary.
Processorstik
Hukommelse og processor	storage: 256 MB SDRAM, 128 MB flash; packet buffer size: 2 MB
Batteritype
Strømforbrug	795 W (maximum)
Indgangsfrekvens	50/60 Hz
Indgangsspænding	100 - 240 VAC, rated (depending on power supply chosen)
Afbrydergrænse
Strømforsyning PoE	720 W PoE+
Montering	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Formfaktor
Formfaktor	1U height
