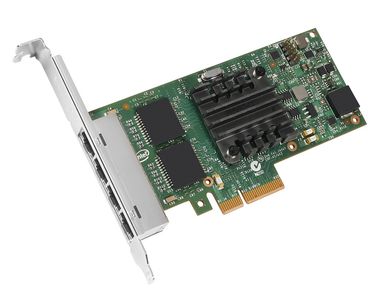

IBM Intel I350-T4 4xGbE BaseT Adapter for System x
|
|
IBM
Intel I350-T4 4xGbE BaseT
Adapter for System x
Varenummer: 00AG520
-
Hastighed
1Gbps
-
Media
Ethernet, Kobber
-
Tilslutning
PCI Express
-
Porte
4
-
PCI V.
2.0
|
2.187,-
2.733,75 inkl. moms
|
|
Beskrivelse
Specifikationer
Intel I350-T4 4xGbE BaseT Adapter for IBM System x
00AG520
The Intel I350 GbE Network Adapter Family for IBM® System x® features a robust, standards-based portfolio that delivers economical Ethernet features in an industry-standard PCIe form factor, and an IBM ML2 form factor. The IBM ML2 Network Adapter is placed into a ML2 slot on equipped IBM System x servers, enabling you to preserve your PCIe slots for other purposes. The IBM ML2 Adapter also enables the IBM System x server’s management traffic to be combined with the application traffic. By merging this traffic onto a single port, your cabling and switching costs are greatly reduced.
Virtualization, cloud computing, High-Performance Computing (HPC), and clustering initiatives are increasing workload demands. The Intel I350 GbE Network Adapter is the solution of choice for workload-intensive computing environments.
Features:
- Reduce power consumption: Innovative power management features
- Market leading virtualization: SRIOV and VMDq
- Two form factors: IBM Exclusive Mezzanine LOM Gen 2 and PCIe
- Excellent selection: 1 Port SR Fiber, 2 Port BaseT, and 4 Port BaseT configurations
Specifications:
| Part number |
- 00D1998: Intel I350 ML2 Quad-Port GbE Adapter for IBM System x
- 00AG500: Intel I350-F1 1xGbE Fiber Adapter for IBM System x
- 00AG510: Intel I350-T2 2xGbE BaseT Adapter for IBM System x
- 00AG520: Intel I350-T4 4xGbE BaseT Adapter for IBM System x
|
| Data rate: |
Line rate with IEEE 802.3 auto negotiation for 1000/100/10 BaseT Ethernet |
| Bus interface |
- PCI Express 2.0 Gen 2 x4 for both 2.5GT/s and 5GT/s
- IBM Mezanine LOM Gen 2 Interface
|
| Interface |
- 00AG500: 1x GbE Fiber Optic LC connector supporting MMF 62.5/50 um
- 00D1998: 4x GbE BaseT, RJ45
- 00AG510: 2x GbE BaseT, RJ45
- 00AG520: 4x GbE BaseT, RJ45
|
| Performance features |
- TCP/UDP, IPv4 checksum offloads, extended Tx descriptors
- IPv6 support for IP/TCP and IP/UDP receive checksum offloads
- Tx TCP segmentation offload (IPv4, IPv6)
- Transmit segmentation offload
- Interrupt throttling control
- Legacy and Message Signal Interrupt (MSI)
- Message Signal Interrupt Extension (MSI-X)
- Intelligent interrupt generation
- RSS for Windows
- Scalable I/O for Linux
- Low latency interrupts
- Header/Packet Data Split in Receive
- PCIe v2.1 TLP processing hint requester
- Descriptor ring management hardware for transmit and receive
|
| Ethernet and power features |
- IEEE 802.3, 802.3u, 802.3ab
- Jumbo frame support (9500 bytes)
- IEEE 1588 and 802.1AS
- MDI/MDIX auto crossover detection
- IEEE 802.3x and 802.3z complaint flow control
- Flow control (IEEE 802.3)
- VLAN support (IEEE 802.1q)
- Priority of service (IEEE 802.1p)
- PXE Preboot eXecution
- iSCSI as an iSCSI software initiator
- Wake on LAN support
- IEEE 802.3az Energy Efficient Ethernet
- DMA coalescing
|
| Virtualization features |
- SRIOV
- Intel Virtual Technology (VT) with I/OAT and VMDq
- Eight TX and Rx Queue pairs per port
- Flexible Port Partitioning – 32 VFs
- RX/TX Round-Robin Scheduling
- Traffic isolation
- Traffic steering
- VM to VM packet forwarding
- MAC and VLAN anti-spoofing
- Malicious driver detection
- Storm control
- Per-pool statistics, off loads, and jumbo support
- IEEE 802.1q VLAN support with VLAN tag insertion for up to 4096
- Mirroring rules
- VEPA (VM switching)
|
| Dimensions & bracket |
- PCIe: Low Profile Adapter with 2U bracket mounted, loose 3U bracket is included in box
- ML2: Conforms to IBM Mezzanine LOM Gen 2 form factor
|
| Warranty |
One year limited warranty. When installed in an IBM System x server, these cards assume your system’s base warranty and any IBM ServicePac® upgrade |
| Forbindelsesteknologi | Kabel |
| Host-interface | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN (RJ-45) porte | 4 |
| PCI version | 2.0 |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Netværksstandard | IEEE 802.3,IEEE 802.3ab |
| Ethernet LAN | Ja |
| Ethernet LAN datahastigheder | 10,100,1000 Mbit/s |
| Kabelteknologi | 10/100/1000BaseT(X) |
| Wi-Fi | Nej |
| Wake-on-LAN klar | Ja |
| Auto MDIX IEEE | Ja |
| Flowkontrol support | Ja |
| Jumbo Frames support | Ja |
| Intern | Ja |
| Anbefalet brug | Server |
| Kompatible produkter | IBM System X |
| Antal | 1 |
| Chipsæt | Intel I350-T4 |
