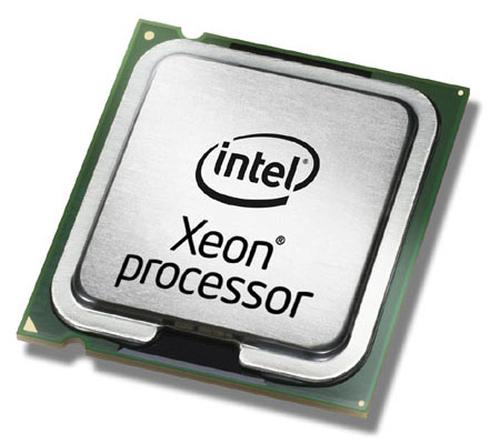

LENOVO INTEL XEON GOLD 6226R 16C 150W THINKSYSTEM SR590/SR650
|
|
LENOVO
INTEL XEON GOLD 6226R
16C 150W THINKSYSTEM SR590/SR650
Varenummer: 4XG7A38082
-
Processor-socket
LGA 3647
-
Processor frekvens
2.9GHz
-
CPU-kerner
16
-
CPU tråde
32
-
Grafikkerne
Ikke tilgængelig
-
CPU-familie
Intel Xeon® Gold
-
TDP
150W
|
30.457,-
38.071,25 inkl. moms
Forventes på lager
13-04-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
Xeon® Gold 6226R
22M Cache, 2.90 GHz
Specifications:
Essentials
-
Product Collection
2nd Generation Intel® Xeon® Scalable Processors
-
Code Name
Products formerly Cascade Lake
-
Vertical Segment
Server
-
Processor Number
6226R
-
Lithography
14 nm
CPU Specifications
-
# of Cores
16
-
# of Threads
32
-
Processor Base Frequency
2.90 GHz
-
Max Turbo Frequency
3.90 GHz
-
Cache
22 MB
-
# of UPI Links
2
-
TDP
150 W
Memory Specifications
-
Max Memory Size (dependent on memory type)
1 TB
-
Memory Types
DDR4-2933
-
Maximum Memory Speed
2933 MHz
-
Max # of Memory Channels
6
-
ECC Memory Supported
: Yes
-
Intel® Optane™ DC Persistent Memory Supported
: Yes
Expansion Options
-
Scalability
2S
-
PCI Express Revision
3.0
-
Max # of PCI Express Lanes
48
Package Specifications
-
Sockets Supported
FCLGA3647
-
TCASE
85°C
-
Package Size
76.0mm x 56.5mm
Advanced Technologies
-
Intel® Deep Learning Boost (Intel® DL Boost)
: Yes
-
Intel® Speed Select Technology - Performance Profile
: No
-
Intel® Speed Select Technology - Base Frequency
: No
-
Intel® Resource Director Technology (Intel® RDT)
: Yes
-
Intel® Speed Shift Technology
: Yes
-
Intel® Turbo Boost Max Technology 3.0
: No
-
Intel® Turbo Boost Technology
2.0
-
Intel vPro® Platform Eligibility
: Yes
-
Intel® Hyper-Threading Technology
: Yes
-
Intel® Virtualization Technology (VT-x)
: Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d)
: Yes
-
Intel® VT-x with Extended Page Tables (EPT)
: Yes
-
Intel® Transactional Synchronization Extensions
: Yes
-
Intel® 64
: Yes
-
Instruction Set Extensions
Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
-
# of AVX-512 FMA Units
2
-
Enhanced Intel SpeedStep® Technology
: Yes
-
Intel® Volume Management Device (VMD)
: Yes
Security & Reliability
-
Intel® AES New Instructions
: Yes
-
Intel® Trusted Execution Technology
: Yes
-
Execute Disable Bit
: Yes
-
Intel® Run Sure Technology
: Yes
-
Mode-based Execute Control (MBE)
: Yes
| Processorserie | Intel® Xeon® Gold |
| Processorgeneration | Intel Xeon skalerbar 2. generation |
| Processormodel | 6226R |
| Processorens basisfrekvens | 2,9 GHz |
| Processorkerner | 16 |
| Processor sokkel | LGA 3647 (Socket P) |
| Processor litografi | 14 nm |
| Pakketype | Bakke |
| Komponent til | Server/arbejdsplads |
| Processortråde | 32 |
| Processor driftstilstande | 64-bit |
| Processor boost frekvens | 3,9 GHz |
| Processor-cache | 22 MB |
| Thermal Design Power (TDP) | 150 W |
| Bus type | UPI |
| Antal QPI-lins | 2 |
| Processor kodenavn | Cascade Lake |
| Maksimal intern hukommelse understøttet af processor | 1 TB |
| Hukommelsestyper understøttet af processor | DDR4-SDRAM |
| Hukommelsesurhastigheder understøttet af processor | 2933 MHz |
| Hukommelseskanaler | Hexa-kanal |
| Fejlkorrigerende kode | Ja |
| On-board grafikkort | Nej |
| Diskret grafikadapter | Nej |
| On-board grafikkort, model | Ikke tilgængelig |
| Diskret grafikadaptermodel | Ikke tilgængelig |
| Udfør deaktivering af bit | Ja |
| Markedssegment | Server |
| Maksimalt antal PCI Express-kanaler | 48 |
| PCI Express slots version | 3.0 |
| Understøttede instruktionssæt | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Skalerbarhed | 2S |
| Indlejret tilgængelige muligheder | Ja |
| Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
| Intel® Turbo Boost Teknologi | 2.0 |
| Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Teknologi | Ja |
| Intel® Speed Shift Technology | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® Turbo Boost Max Teknologi 3.0 | Nej |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Ja |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | Nej |
| Intel® Volume Management Device (VMD) | Ja |
| Intel® Optane™ DC Persistent Memory understøttet | Ja |
| Berettigelse til Intel® vPro™ platform | Ja |
| Intel® Speed Select-teknologi - Basefrekvens (Intel® SST-BF) | Nej |
| Tcase | 85 °C |
| Harmoniseret systemkode (HS) | 85423119 |
| Processor-pakke størrelse | 76 x 56.5 mm |
| Kapabilitet | ThinkSystem SR590/SR650 |
På lager
Ikke på lager
SERVERE / SERVERE
LENOVO
ThinkSystem SR650 XEON 6226R
2.9GHZ 22MB
Type: Stativ (2U) - CPU-familie: Intel® Xeon® Gold - Processor: 6226R - Antal installerede processorer: 1 - Max processorer: 2 - Max diske: 24 - Installeret memory: 32GB - Max memory: 768GB - Model: Lenovo TS SR-series - Redundant PSU: Ja - Garanti / Måneder: 36 - CTO / BTO: Nej
