MULTIBRACKETS M Ceiling Mount Pro MBC1UHD
|
|
MULTIBRACKETS
M Ceiling Mount Pro
MBC1UHD
Varenummer: 7350073735778
|
|
1.854,-
2.317,50 inkl. moms
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter

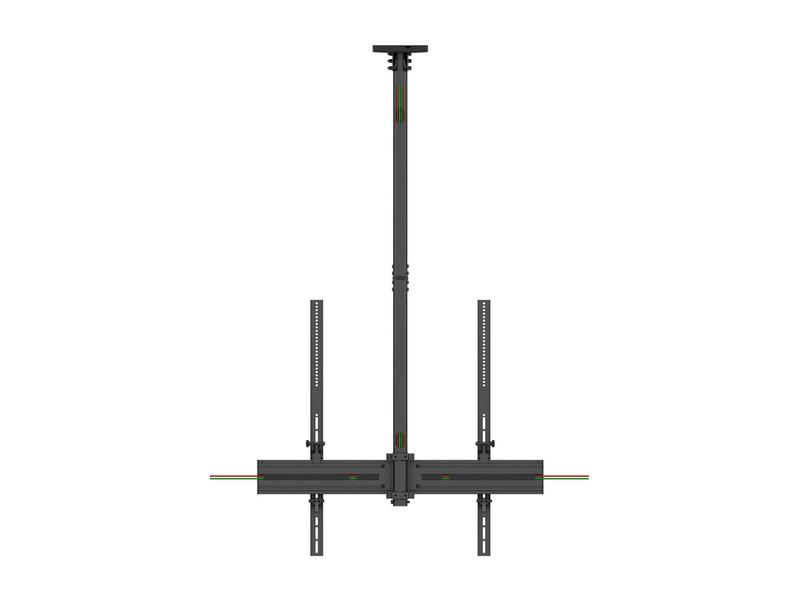

M Ceiling Mount Pro MBC1UHD
Multibrackets Pro Series M Ceiling Mount Pro MBC1UHD is our innovative - ready to be installed Single-Display High Duty Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular,
easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1UHD is no exception. The product provides the versatility and
flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result
worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount
is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes
hardware so that a basic installation should not be a hassle.

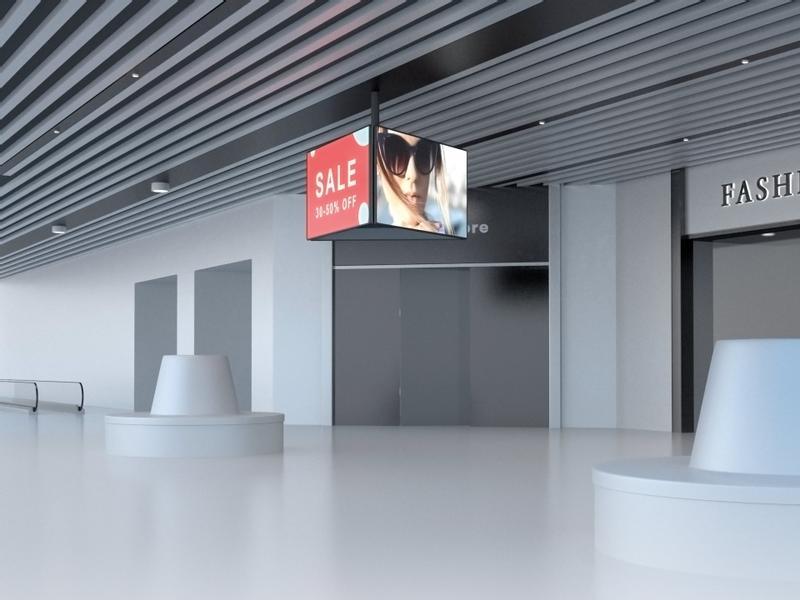

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Highlights
- Suitable for larger screens
- Holds 90kg max load
- A professional, flexible and modular product
- Includes VESA adapters for compatibility up to VESA 900x600
- Integrated cable management throughout the entire solution
- Power click install for an easy, fast and safe installation

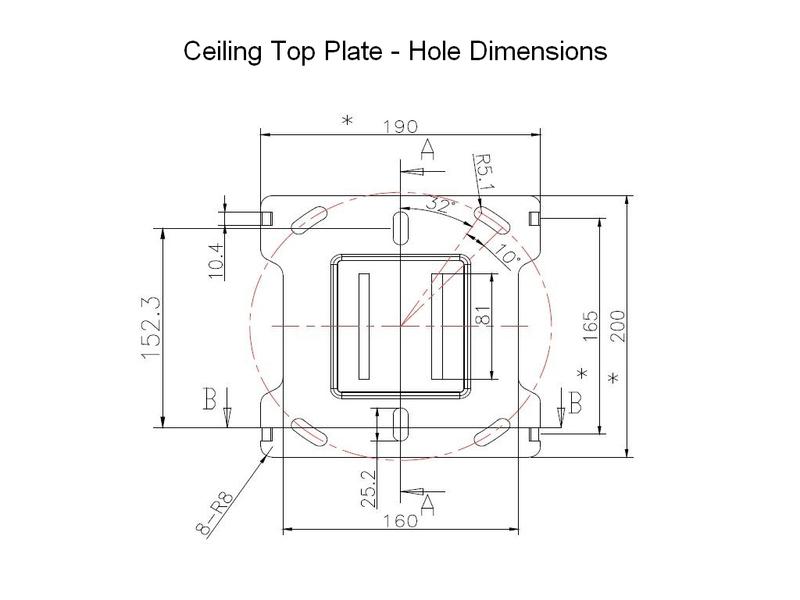

- Ceiling plate included
- Portrait or landscape position of screen possible
- Hardware kit included
Selected models are TÜV approved.
MB Pro Series is Design Protected by Multibrackets
| Specification |
| M Ceiling Mount Pro MBC1UHD |
| Article No: |
7 350 073 735 778 |
| For screen size: |
40”-75" |
| Type: |
Single Side MBC1UHD |
| Universal & VESA standard: |
Adjustable from 100x100 to 900x600 max |
| Material: |
Steel, Aluminium |
| Color: |
Black |
| Surface Finish: |
Powder coating/Anodic Oxidation |
| Weight: |
8.5 kg |
| Measurements |
69x178x20 cm |
| Max Load: |
90 kg |
| Pillar length: |
Min: 580mm to Max: 1550 mm
from ceiling to VESA plate center
Extension pipes: 1.5m (800mm*2pcs) included |
| Tilt: |
Yes, -6° ~ +15° |
| Swivel: |
Yes, 90° |
| Rotate: |
Yes, ±4° |
| Cable Management: |
Yes |
| Options: |
Extension pipes : 0.8m, 1.5m, 3.0m |
| Certifications: |
|
| Warranty: |
5 years |
| Antal understøttede skærme | 1 |
| Maksimal vægtkapacitet | 90 kg |
| Minimal skærmstørrelse kompatibilitet | 101,6 cm (40") |
| Maksimal skærmstørrelse kompatibilitet | 190,5 cm (75") |
| Monteringstype | Loft |
| Montering interface kompatibilitet (min.) | 100 x 100 mm |
| Montering interface kompatibilitet (maks.) | 900 x 600 mm |
| Panel montering grænseflade | 100 x 100,900 x 600 mm |
| Højdejustering | Ja |
| Højdejusteringstype | Vejledning |
| Højdejusteringsområde | 580 - 1550 mm |
| Hældningsvinkelområde | -6 - 15° |
| Drejelig vinkel | 90° |
| Rotationsvinkel | 8° |
| Forbedret kabelstyring | Ja |
| Loftsmontering rørlængde (min.) | 58 cm |
| Loftsmontering rørlængde (maks.) | 155 cm |
| Produktfarve | Sort |
| Husmateriale | Aluminium, Stål |
| Bredde | 690 mm |
| Dybde | 200 mm |
| Højde | 1780 mm |
| Vægt | 9,8 kg |
| Aluminium content weight | 2,4 kg |
| Steel content weight | 9,8 kg |
| Other metals content weight | 0 g |
| Pakkebredde | 255 mm |
| Pakkedybde | 1020 mm |
| Pakkehøjde | 150 mm |
| Pakkevægt | 10,7 kg |
| Antal pr. pakke | 1 stk |
| Paper/cardboard packaging weight | 800 g |
| 3 | 0 g |
| Vægt af plastemballage | 100 g |
| Forsendelseskasses kassens bredde (indvendig) | 25,5 cm |
| Forsendelseskassens længde (indvendig) | 102 cm |
| Forsendelseskassens højde (indvendig) | 15 cm |
| Forsendelseskassens bruttovægt (indvendig) | 10 kg |
| Produkter pr. forsendelseskasse (indvendig) | 1 stk |
