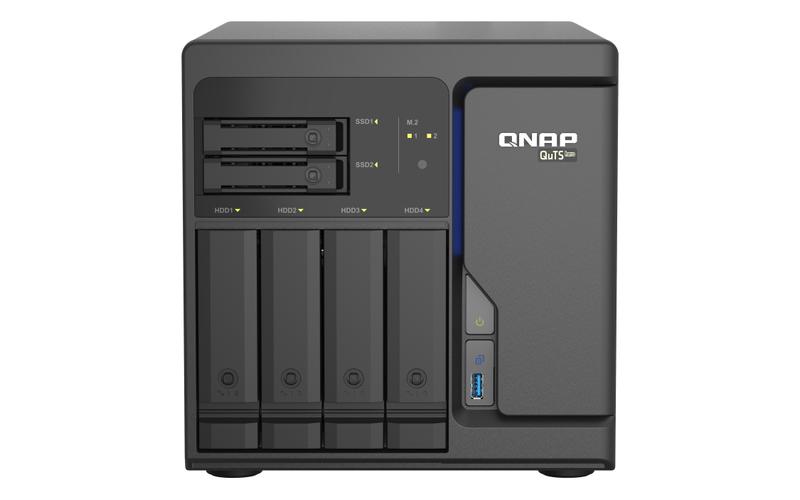

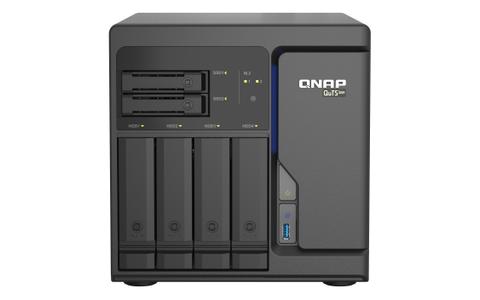

TS-h686-D1602-8G

• 2.5GbE connectivity
  • Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.
• ECC memory
  • DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
• Dual M.2 PCIe slots
  • Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.
• Flexible PCIe expansion
  • Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
• Virtualization applications
  • Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
• ZFS file system
  • QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.

• Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz

• 64-bit x86

• Yes

• Yes (AES-NI)

• Optional via a PCIe adapter

• 8 GB UDIMM DDR4 ECC (2 x 4 GB)

• 128 GB (4 x 32 GB)

• 4 x UDIMM DDR4

• 5GB (Dual boot OS protection)

• 4 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s

• 3.5-inch bays:
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
• 2.5-inch bays:
  • 2.5-inch SATA solid state drives

• Yes

• 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots

• Yes

• Yes

• Yes

• 4 (2.5G/1G/100M/10M)

• Optional via an adapter

• Optional via an adapter

• Yes

• Yes

• 2
  • Slot 1: PCIe Gen3 x8
  • Slot 2: PCIe Gen3 x8

• 3

• Tower

• System status, LAN, USB, Disk 1~6, M.2 SSD 1~2

• Power, Reset, USB Auto Copy

• 231.9 × 224.9 × 319.8 mm

• 7.27 kg

• 8.72 kg

• 0 - 40°C (32°F - 104°F)

• -20 - 70°C (-4°F - 158°F)

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

• 250W PSU, 100~240V

• 61.115 W

• System fan: 1 x 97mm, 12VDC
• CPU fan: 1 x 90mm, 12VDC

• Buzzer

• Yes

• 10000
