SAMSUNG 46IN E-LED FHD 16:9 8MS OM46N 5000:1 VGA/HDMI 4000 CD/M2 LFD
|
|
SAMSUNG
46IN E-LED FHD 16:9
8MS OM46N 5000:1 VGA/HDMI 4000 CD/M2 LFD
Varenummer: LH46OMNSLGB/EN
-
Skærmstørrelse
46"
-
Opløsning
1920 x 1080
-
HD
Fuld HD
-
USB-C
0
-
DVI
0
-
DP
1
-
HDMI
2
-
Berøringsskærm
Nej
-
Højttalere
Nej
-
Skærmform
Flad
-
Højdejustering
Nej
-
Drejbar
Nej
-
Pivot
Ja
-
Anvendelsesområde
Digital signage
|
17.289,-
21.611,25 inkl. moms
|
|
Beskrivelse
Specifikationer
Energy label
Tilbehør / Relevante produkter
OM46N
Promote content with exceptional clarity in any storefront window
Features:- Ultra-high brightness emphasizing content, regardless of the lighting conditions
- Slim and contemporary design that seamlessly integrates into any display window
- Easy content management with a built-in management solution
Specifications:
Panel
- Diagonal Size46"
- TypeE-LED BLU
- Resolution1920*1080 (Full HD)
- Pixel Pitch(mm)0.530 x 0.530
- Active Display Area(mm)1018.08(H) x 572.67(V)
- Brightness(Typ.)4000 nit
- Contrast Ratio5000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)6ms
- Display Colors8 bit - 16.7M
- Color Gamut72%
- Haze0%
Display
- Dynamic C/R100,000:1
- H-Scanning Frequency30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
- V-Scanning Frequency30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
- Maximum Pixel Frequency533.25MHz (DP), 594MHz (HDMI)

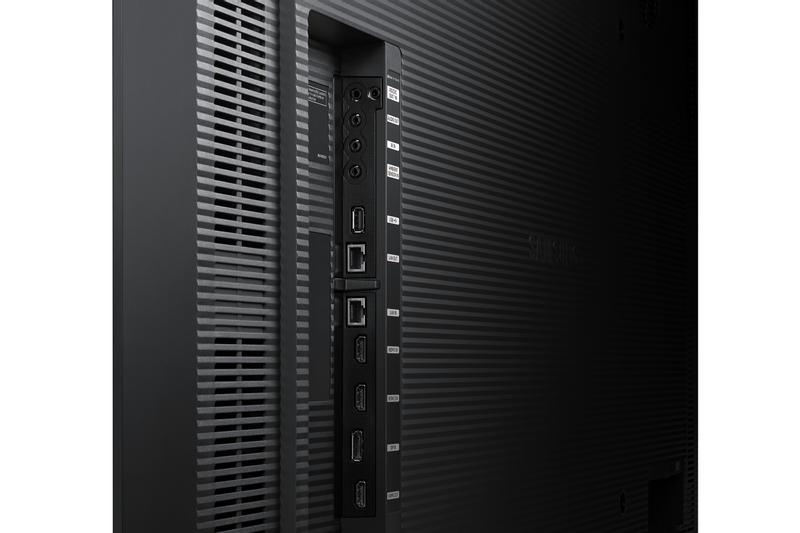

Connectivity
Input
- RGBDisplay Port 1.2 (1)
- VideoHDMI2.0 (2)
- HDCPHDCP 2.2
- AudioN/A
- USBUSB 2.0 (1)
Output
- RGBHDMI 2.0
- VideoYes
- AudioStereo Mini Jack
- Power OutN/A
- External ControlRS232C (In/Out), RJ45 (In/Out)
- External SensorDetachable Type (IR, Ambient)
- TunerN/A
Power
- TypeInternal
- Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]350
- Typical[W/h]W/W(EU) : 210US/KOR/Etc : 330※ Etc: CHINA, TAIWAN, BRA, CIS
- BTU(Max)1194
- Sleep mode0.5W
- Off mode0.5W
Mechanical Specification
Dimension (mm)
- Set1062 x 616.6 x 54.5 mm
- Package1189 x 757 x 158 mm
Weight (kg)
- VESA Mount (mm)400 x 400 mm
- Mounting HoleN/A
- Protection GlassN/A
- Stand TypeN/A
- Media Player Option TypeN/A
- Bezel Width (mm)19.9 (even)
Operation
- Recommended Usage Hours24/7
-
Operating Temperature
0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)
-
Humidity
10
% ~
80
%
Feature
- Key FeaturesHigh brightness Semi-Outdoor Slim & Clean back designBuilt-in MagicInfo Player S6, SSSP 6.0
- Special Features
IP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)
Internal Player
- ProcessorCoretex A72 1.7GHz Quad-Core CPU
- On-Chip Cache MemoryL1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
- Clock Speed1.7GHz
- Main Memory Interface2.5GB
LPDDR4 1.5GHz 64bit
- GraphicsGraphic resolution : 1920x1080
Output resolution : up to 3840x2160 (Scale up from graphic processing result.)
- Supports OpenGL ES
- Storage (FDM)8GB
(3.88GB Occupied by O/S, 4.12GB Available)
- MultimediaVideo Decoder
- MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC
- VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
Audio Decoder
- AC3 (DD), MPEG
- IO PortsUSB 2.0
- Operating SystemTizen 4.0 (VDLinux)
Certification
- SafetyCB (Europe) : IEC60950-1/EN60950-1
UL(USA) : cUL60950-1
- EMCFCC (USA) Part 15, Subpart B Class A
CE (Europe) : EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003
Accessory
- IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor
Optional
- StandN/A
- Mount
N/A
- SpecialtyN/A
| Skærm diagonal | 116,8 cm (46") |
| Skærmteknologi | VA |
| Paneltype | VA |
| LED-baggrundsbelysning type | Edge-LED BLU |
| Skærmopløsning | 1920 x 1080 pixel |
| Skærmens lysstyrke | 4000 cd/m² |
| HD-type | Fuld HD |
| Berøringsskærm | Nej |
| Naturligt aspektforhold | 16:9 |
| Responstid | 6 ms |
| Kontrastforhold (typisk) | 5000:1 |
| Synsvinkel, horisontal | 178° |
| Synsvinkel, vertikal | 178° |
| Vis antal farver | 16,78 millioner farver |
| Pixel pitch | 0,53 x 0,53 mm |
| Aktiv skærmområde (B x H) | 1018,08 x 572,67 mm |
| Skærm diagonal (metrisk) | 116,8 cm |
| Horisontal scanningsområde | 15 - 135 kHz |
| Vertikalt scanningsområde | 24 - 75 Hz |
| Tågehastighed | 0% |
| Pixel-frekvens (maks.) | 594 MHz |
| Farveområde | 72% |
| Antal HDMI-porte | 3 |
| HDMI-version | 2.0 |
| Antal HDMI-indgangsporte | 2 |
| Antal HDMI-udgangsporte | 1 |
| DVI-port | Nej |
| VGA (D-Sub) indgangsporte | 0 |
| Antal DisplayPorts | 1 |
| DisplayPorts indgang | 1 |
| USB-port | Ja |
| Antal USB-porte | 1 |
| USB version | 2.0 |
| Ethernet LAN-porte (RJ-45) | 2 |
| RS-232 grænseflade | Ja |
| RS-232C | Ja |
| Fjernbetjening (IR) indgang | 1 |
| PC-lydudgang | Ja |
| Indbyggede højttaler(e) | Nej |
| Produktdesign | Digital fladpaneldisplay |
| Produktfarve | Sort |
| Understøttet placering | Indendørs |
| Orientering | Horisontal/vertikal |
| VESA montering | Ja |
| Panel montering grænseflade | 400 x 400 mm |
| Formål | Detail |
| Driftstimer (timer/dage) | 24/7 |
| HDCP | Ja |
| Kode for international beskyttelse (IP) | IP5X |
| HDCP-version | 2.2 |
| Strømforbrug (typisk) | 350 W |
| Strømforbrug (standby) | 0,5 W |
| Strømforbrug (dvale) | 0,5 W |
| Strømforbrug (slukket) | 0,5 W |
| Energieffektivitetsklasse (SDR) | G |
| Energiforbrug (SDR) pr. 1000 timer | 231 kWh |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Computersystem | Ja |
| Indbygget processer | Ja |
| Processorserie | ARM Cortex |
| Processormodel | A72 |
| Processorfrekvens | 1,7 GHz |
| Processorkerner | 4 |
| Intern hukommelse | 2,5 GB |
| Intern lagerkapacitet | 8 GB |
| Operativsystem installeret | Tizen 4.0 |
| Understøttede videoformater | AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Understøttede lydformater | MPEG, AC3 |
| Understøttede billedformater | JPEG, PNG |
| Skærmbredde | 1062 mm |
| Skærm, dybde | 54,5 mm |
| Skærm, højde | 616,6 mm |
| Bredde | 1062 mm |
| Dybde | 54,5 mm |
| Højde | 616,6 mm |
| Vægt | 18,2 kg |
| Vægt (med stativ) | 18,2 kg |
| Pakkebredde | 1189 mm |
| Pakkedybde | 158 mm |
| Pakkehøjde | 757 mm |
| Pakkevægt | 23 kg |
| Fjernbetjening inkluderet | Ja |
| Batterier inkluderet | Ja |
| Kabler inkluderet | Vekselstrøm |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 80% |
| Certificering | 60950-1 |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Sensor for omgivende lys | Ja |
| Harmoniseret systemkode (HS) | 85285210 |
| Compliance-certifikater | Elektromagnetisk kompatibilitet (EMC) |
| HDBaseT-port | Nej |
| Lydindgang | No |
| Videoudgang | Yes |
