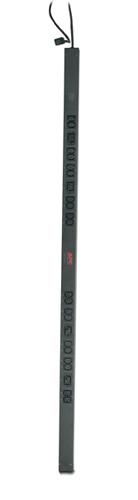

APC Basic Rack PDU/U 16A 230V C13
Forsiden
/
.
/
APC Basic Rack PDU/U 16A 230V C13
|
|
APC
Basic Rack PDU/U 16A
230V C13
Varenummer: AP7552
|
|
2.917,-
3.646,25 inkl. moms
Forventes på lager
04-04-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19; IEC C20
AP7552
APC Basic Rack PDU , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 10 feet ( 3.05 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation Guide, Toolless Mounting Kit
Features
Low Cost Power Distribution
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Output
Nominal Output Voltage
230V
Maximum Total Current Draw per Phase
16A
Output Connections
| (20) IEC 320 C13 |
|
| (4) IEC 320 C19 |
|
Input
Nominal Input Voltage
230V
Cord Length
10 feet ( 3.05 meters)
Maximum Input Current per phase
16A
Physical
Net Weight
10.70 lbs. ( 4.86 kg)
Maximum Height
63.75 inches (1619 mm)
Maximum Width
2.20 inches ( 56 mm)
Maximum depth
1.73 inches ( 44 mm)
Shipping Weight
12.70 lbs. ( 5.77 kg)
Shipping Height
84.00 inches (2134 mm)
Shipping Width
6.00 inches (152 mm)
Shipping Depth
5.00 inches (127 mm)
Environmental
Operating Environment
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Conformance
Regulatory Approvals
CE,GOST,IRAM,VDE
Standard Warranty
2 years repair or replace
| PDU-typer | Basis |
| Rackkapacitet | 0U |
| Montering | Lodret |
| Produktfarve | Sort |
| AC udgange, antal | 24 AC stikkontakt(er) |
| Strømstik | C20 forbinder |
| AC stikkontakt typer | C13 forbinder, C19 forbinder |
| Input forbindertype | IEC-320 C20 |
| I/O-porte | (4) IEC 320 C19
(20) IEC 320 C13 |
| Kabellængde | 3,05 m |
| Nominel indgangsspænding | 230 V |
| Nominel udgangsspænding | 230 V |
| Load-kapacitet | 3680 VA |
| Maksimal input strøm pr. fase | 16 A |
| Maksimal ydeevne | 3680 W |
| Certificering | CCC,CE,GOST,IRAM,VDE |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Opbevaringstemperatur (T-T) | -25 - 65 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
| Bredde | 55,9 mm |
| Dybde | 43,9 mm |
| Højde | 1619,3 mm |
| Vægt | 4,86 kg |
| Pakkevægt | 5,77 kg |
| Pakkebredde | 152 mm |
| Pakkedybde | 127 mm |
| Pakkehøjde | 2134 mm |
