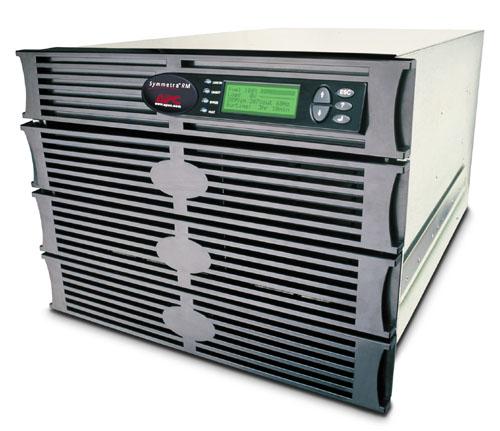

APC SYMMETRA RM 4KVA EXP TO 6KVA N+1 IN
|
|
APC
SYMMETRA RM 4KVA EXP
TO 6KVA N+1 IN
Varenummer: SYH4K6RMI
-
Effekt
4kVA
-
Produkt
Rackmount UPS
|
62.465,-
78.081,25 inkl. moms
Forventes på lager
19-05-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
APC Symmetra RM 4kVA Scalable to 6kVA N+1 220-240V
SYH4K6RMI
APC Symmetra, 4000VA/2800W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management, Extended runtime model, Rack Height 8 U
Includes: CD with software, Rack Mounting Brackets, Rack Mounting support rails, User Manual
Output
Output Power Capacity
2800 Watts / 4000 VA
Max Configurable Power
4200 Watts / 6000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
89%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal
Output Connections
| (8) IEC 320 C13 |
|
| (2) IEC 320 C19 |
|
Input
Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input voltage range for main operations
155 - 276V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Available Battery Slots
2
Typical recharge time
4 hour(s)
Replacement battery cartridge note
UPS accepts 1-2 additional battery packs
Typical Backup Time
at Half Load
30.2 minutes (1400 Watts)
Typical Backup Time
at Full Load
12.7 minutes (2800 Watts)
Extended Run Options
APC Symmetra RM 4kVA Scalable to 6kVA N+1 220-240V
Communications & Management
Interface Port(s)
DB-9 RS-232,RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management
Available SmartSlot™ Interface Quantity
1
Pre-Installed SmartSlot™ Cards
AP9619
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Physical
Maximum Height
14.00 inches (356 mm)
Maximum Width
19.00 inches (483 mm)
Maximum depth
28.75 inches (730 mm)
Net Weight
229.00 lbs. (104.09 kg)
Shipping Weight
256.00 lbs. (116.36 kg)
Shipping Height
20.00 inches (508 mm)
Shipping Width
23.00 inches (584 mm)
Shipping Depth
31.00 inches (787 mm)
Environmental
Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 - 113 °F (-15 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
60 dBA
Online Thermal Dissipation
1,181 BTU/hr
Conformance
Regulatory Approvals
C-tick,CE,EN 50091-2,EN 60950,IRAM,VDE
Standard Warranty
2 years repair or replace,optional on-site warranties available,optional extended warranties available
| Output strømkapacitet (VA) | 4 kVA |
| Udgangseffekt | 2800 W |
| Nødstrøm Off (EPO) | Ja |
| AC stikkontakt typer | IEC 60320 |
| Typisk backup tid ved fuld styrke | 12,7 min. |
| Typisk backup tid ved halv styrke | 30,2 min. |
| Udskiftningsbatteri | APC Replacement Battery SYBT2 |
| Produktfarve | Sort |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -15 - 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Medfølgende software | - PowerChute Network Shutdown
- PowerChute plus for AIX v4.2.3
- PowerChute plus for HP-UX v 4.2.3
- PowerChute plus for Linux v 4.5.2
- PowerChute plus for Novell NetWare v4.3.3
- PowerChute plus for Red Hat Linux v 4.5.2.1
- PowerChute plus for Solaris v 4.5
- PowerChute Plus for Windows NT/2000 (English) v. 5.2.1 |
| Harmoniseret systemkode (HS) | 85078000 |
| Batteritype | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Grænseflade | DB-9 RS-232, RJ-45 10 Base-T ethernet for web/ SNMP/ Telnet management |
| Output-forbindere | (8)IEC 320 C13
(2)IEC 320 C19 |
| Input forbindertype | Hard Wire 3-wire |
| Dimensioner (BxDxH) | 482,6 x 730,3 x 355,6 mm |
| Nominel udgangsspænding | 230 V |
| Udgangsspænding note | Configurable for 220: 230 or 240 nominal output voltage |
| Nominel indgangsspænding | 230 V |
