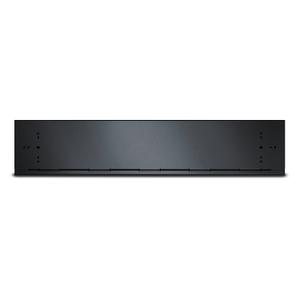

APC SERVICE BYPASS PANEL 230V 16A BBM IEC C20
|
|
APC
SERVICE BYPASS PANEL 230V
16A BBM IEC C20
Varenummer: SBP3000RMI
|
|
3.015,-
3.768,75 inkl. moms
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC Jumpers
Output
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 16A
Output Connections: 6) IEC 320 C13
|
| (1) IEC 320 C19 |
|
| (1) IEC Jumpers |
|
Input
Nominal Input Voltage: 230V
Input Frequency: 50/60 Hz
Input Connections: IEC-320 C20
|
Acceptable Input Voltage: 220-240 VAC
Maximum Line Current per phase: 16A
Maximum Input Current per phase: 16A
Load Power Factor Range: 0 to 1
Physical
Shipping Height: 151.00 mm
Shipping Width: 463.00 mm
Shipping Depth: 295.00 mm
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-4500 meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-15000 meters
Conformance
Regulatory Approvals: VDE
Standard Warranty: 2 years repair or replace
Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs
Features
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Certificering | VDE, REACH |
| Compliance-certifikater | RoHS |
| Bredde | 432 mm |
| Dybde | 76 mm |
| Højde | 89 mm |
| Vægt | 2,09 kg |
