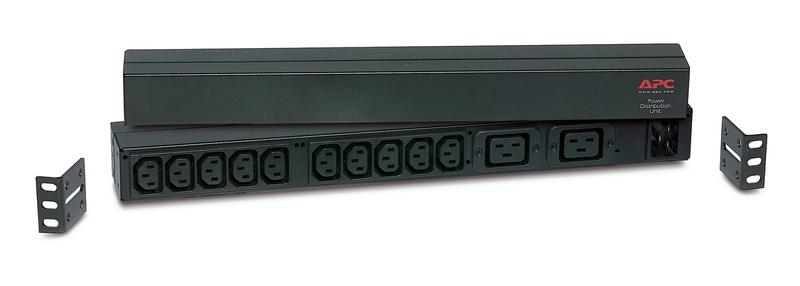

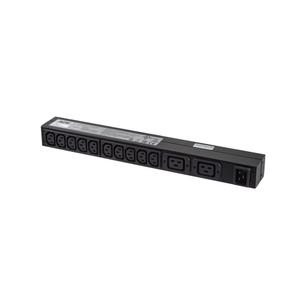

APC HORIZONTAL RACK-MOUNT POWER DISTRIBUTION UNIT NS
|
|
APC
HORIZONTAL RACK-MOUNT POWER DISTRIBUTION
UNIT NS
Varenummer: AP9559
APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - 12 output connector(s)
|
2.598,-
3.247,50 inkl. moms
Forventes på lager
02-04-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter
Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19
AP9559
APC Basic Rack PDU , Input: 120V, 208V, 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 120V, 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Rack Mounting Brackets, User Manual
Features
Low Cost Power Distribution
Vertical Mounting Capabilities
Output
Nominal Output Voltage
120V,208V,230V
Maximum Total Current Draw per Phase
16A
Output Connections
| (10) IEC 320 C13 |
|
| (2) IEC 320 C19 |
|
Input
Nominal Input Voltage
120V,208V,230V
Cord Length
8.20 feet ( 2.50 meters)
Acceptable Input Voltage
90-250 VAC
Maximum Line Current per phase
16A
Maximum Input Current per phase
16A
Physical
Net Weight
2.15 lbs. ( 0.98 kg)
Maximum Height
1.75 inches ( 44 mm)
Maximum Width
17.60 inches (447 mm)
Maximum depth
2.25 inches ( 57 mm)
Shipping Weight
5.20 lbs. ( 2.36 kg)
Shipping Height
6.50 inches (165 mm)
Shipping Width
19.00 inches (483 mm)
Shipping Depth
6.00 inches (152 mm)
Environmental
Operating Environment
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Conformance
Regulatory Approvals
CE,GOST,VDE
Standard Warranty
2 years repair or replace
| PDU-typer | Basis |
| Type | Enfaset |
| Rackkapacitet | 0U/1U |
| Montering | Horisontal/vertikal |
| Produktfarve | Sort |
| AC udgange, antal | 12 AC stikkontakt(er) |
| Strømstik | C20 forbinder |
| AC stikkontakt typer | C13 forbinder, C19 forbinder |
| I/O-porte | Output Connections - (10)IEC 320 C13; (2)IEC 320 C19
Input Connection Type - IEC-320 C20
|
| Kabellængde | 2,5 m |
| Load-kapacitet | 3680 VA |
| Maksimal input strøm pr. fase | 16 A |
| Maksimal ydeevne | 3680 W |
| Driftstemperatur (T-T) | 0 - 45 °C |
| Opbevaringstemperatur (T-T) | -25 - 65 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Bredde | 447 mm |
| Dybde | 57,2 mm |
| Dimensioner (BxDxH) | 447 x 57,2 x 44,5 mm |
| Højde | 44,5 mm |
| Vægt | 980 g |
