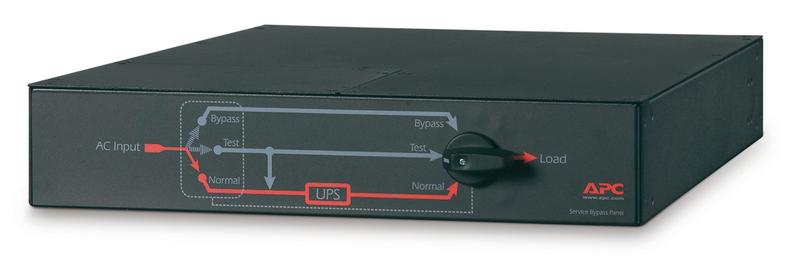

APC SINGLE PHASE SERVICE BYPASS PANEL 3000-5000VA BLACK NS
|
|
APC
SINGLE PHASE SERVICE BYPASS
PANEL 3000-5000VA BLACK NS
Varenummer: SBP5000RMI2U
-
Effekt
0VA
-
Produkt
Tilbehør
|
7.221,-
9.026,25 inkl. moms
Forventes på lager
31-03-2026
|
|
Beskrivelse
Specifikationer
Tilbehør / Relevante produkter

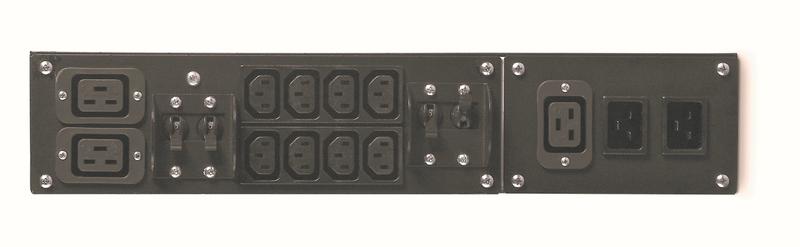

APC Service Bypass Panel- 230V; 50A; BBM; IEC320 C20/HW input; IEC-320 Output- (2) C19 (8) C13
APC Maintenance Bypass Panels , Input: 230V , Input Connection Type: Hard Wire 3 wire (1PH+N+G) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation Guide, Rack Mounting Brackets, User Manual
Features:
- 19 inch Rack-Mountable
- Quick Transfer Rate
- Wrap Around System Bypass
Technical Specifications
| Nominal output voltage |
230V |
| Maximum Total Current Draw per Phase |
32 |
| Output Connections |
| (8) IEC 320 C13 |
|
| (2) IEC 320 C19 |
| |
| Overload Protection |
Yes |
| Nominal input voltage |
230V |
| Input frequency |
50/60 Hz |
| Input Connection Type |
| Hard Wire 3 wire (1PH+N+G) |
| |
| Maximum Line Current per phase |
32 A |
| Maximum Input Current per phase |
32 A |
| Load Capacity |
7,680 VA |
| Load Power Factor Range |
0 to 1 |
| Net weight |
25 lbs. ( 11 kg ) |
| Maximum height |
3.50 inches ( 8.89 cm ) |
| Maximum width |
17 inches ( 43 cm ) |
| Maximum depth |
26 inches ( 66 cm ) |
| Shipping Weight |
51 lbs. ( 23 kg ) |
| Shipping Height |
8 inches ( 20 cm ) |
| Shipping Width |
24 inches ( 61 cm ) |
| Shipping Depth |
39 inches ( 99 cm ) |
| Color |
Black |
| Units per Pallet |
10 |
| Operating Environment |
-20 - 50 °C ( -4 - 122 °F ) |
| Operating Relative Humidity |
0 - 95 % |
| Operating Elevation |
0-15000 feet ( 0-4500 meters ) |
| Storage Temperature |
-25 - 65 °C ( -13 - 149 °F ) |
| Storage Relative Humidity |
0 - 95 % |
| Storage Elevation |
0-50000 feet ( 0-15000 meters ) |
| Approvals |
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 |
| Standard warranty |
2 years parts |
| Driftstemperatur (T-T) | -20 - 50 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Bredde | 432 mm |
| Dybde | 66 mm |
| Højde | 89 mm |
| Vægt | 11,4 kg |
