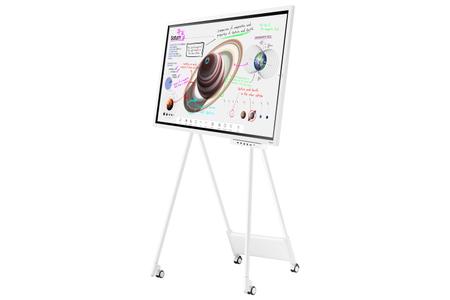

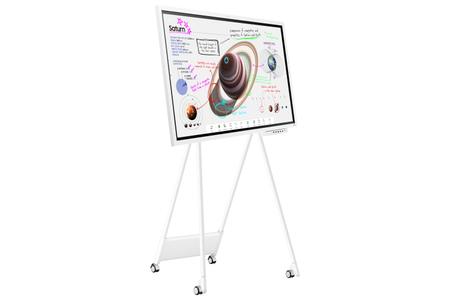

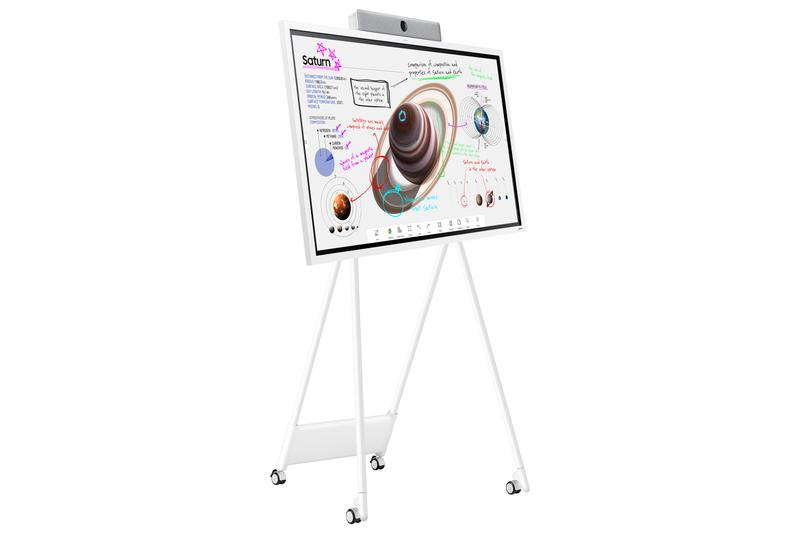

Flip Pro WM65B Interactive Display

• Drawing experience with 2,048 points of pressure with industry-best latency at just 26ms
• A real-world writing experience with pen and brush mode, quick tool and palette
• Multiple connectivity including HDMI, USB, USB Type-C, DP and easy screen sharing via wireless
• Versatile learning experience with Boxlight or Video call applications

• Panel
• Diagonal Size 65
• Type New Edge, 60Hz
• Resolution 3840*2160 (4K UHD)
• Brightness(Typ.) 350 (without glass) nit
• Contrast Ratio 4000:1 (Typ.)(without glass)
• Viewing Angle(H/V) 178/178
• Response Time(G-to-G) 8ms(Typ.)
• Operation Hour 16/7
• Haze 8%~12%
• Sound
• Speaker Type Built in Speaker (10W x2CH)
• Connectivity
• Input
• Video (Basic) HDMI 1, DP1(With Tray) HDMI 1, USB-C
• USB (Basic) USB 1 (With Tray) USB 2, USB External (In/Out) 1
• Output
• Audio 1(Stereo Mini Jack)
• Touch Out (Basic) Touch Out 1 (USB Upstream Type)(With Tray) Touch Out 1
• External Control Touch InputRS232C thru stereo jack, RJ45(For MDC)
• BT/WiFi Yes (Keyboard/Mouse,speaker)
• Touch
• Type IR
• # of Drawing 20 touch (internal/external)* Whiteboarding app works 4 drawing
• Touch Pen Type Passive Pen with magnet
• Object Recognition Range 2mm/ 4mm / 8mm / 50mm(Brush Mode : Dynamic Object Recognition)
• Touch Response Time 6.7ms
• Drawing Speed (Touch latency) 26ms
• Haze 8%~12%
• Thickness 3.2T
• Hardness Heat Semi-Strengthened Glass
• Additional Film AG Flim(Anti glare) Hydrophobic Coated PET (Shatter-proof flim) Antimicrobial Coating
• Power
• Type Internal
• Power Supply AC100-240V 50/60Hz
• Power Consumption
• Max[W/h] 192.5W(100-240V)
• Typical[W/h] 124W
• Rating[W/h] 175W
• Stand-by(Max) 0.5
• BTU(Max) 656.425W
• Mechanical Specification
• Dimension (mm)
• Set 1522.4 x 897.6 x 62.9 mm
• Package 1691 x 1055 x 198 mm
• Weight (kg)
• Set 39.7 kg
• Package 48.2 kg
• Color Gray White
• VESA Mount (mm) 400 * 400
• Protection Glass Yes
• Stand Type Wallmount (WMN-WN65R)

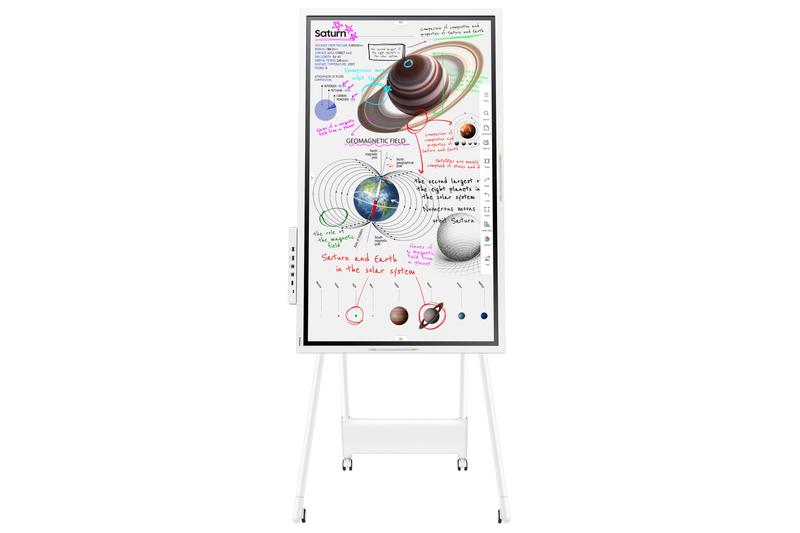

• Rotation Landscape / Portrait
• Power Cable Length 3M /2.4M(US)
• Accessory Power Cord, USB Upstream Cable(1ea), Pen(2ea, Black) Waranty/QSG
• Operation
• Operating Temperature 0 ℃ ~ 30 ℃ Humidity 10 % ~ 80 % non-condensing
• Feature
• Key Features Flip App
• Orientation Landscape / Portrait
• Remote Control N/A
• Special Features H/W Touch module(IR), Built in Speaker(20W 2CH), WiFi/BT Module Embedded
• S/W First screen: Flip S/W(whiteboarding app), Apps : Document viewer, Smartview+, Video player, Web browser, workspace,
• (RDP/VNC, Office365, VMWare), Edu tool, mimioconnect(N.America Only), WebRTC : Yes, Upgradable web engine : Yes,
• Smartview+ : Yes, Airplay : Ready to update ('22.5)
• Platform Pontus-M (Tizen 6.5)
• Internal Player Processor CA72 Quad(1.7GHz)
• On-Chip Cache Memory N/A
• Clock Speed N/A
• Main Memory Interface N/A
• Graphics N/A
• Storage (FDM) 32GB (2.65GB Occupied by O/S, 29.35GB Available)
• Multimedia N/A
• IO Ports N/A
• Operating System Tizen 6.5 : Samsung Proprietary OS(VDLinux)
• Certification
• Safety N/A
• EMC N/A
• Security 802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
• Accessory
• Included Power Cord, USB Upstream Cable(1ea), Pen(2ea, Black),Waranty/QSG
• Optional
• Stand N / A (3rd party company stand can be supported through VESA)
• Mount WMN-WM65R
• Specialty N/A

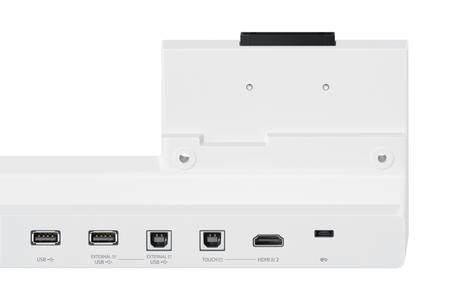

• Tray CY-TF65BBC
• Media Player
• Media Player N/A
