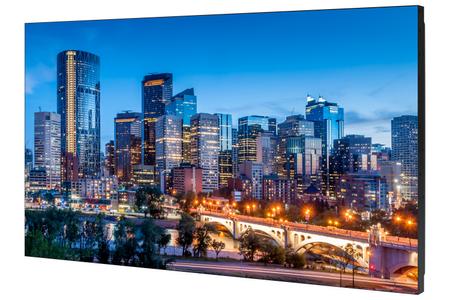

VM55B-E

• An extreme narrow 1.74mm bezel-to-bezel design creates seamless visual experience
• The thoughtful design blends in seamlessly and transforms any location with powerful visuals
• Powerful picture enhancement technology ensures all content is vibrant and clear

• Panel
• Diagonal Size 55
• Type IPS
• Resolution 1920*1080 (Full HD)
• Pixel Pitch(mm) 0.63x0.63
• Active Display Area(mm) 1209.6(H) x 680.4(V)
• Brightness(Typ.) 500 nit
• Contrast Ratio 1000:1
• Viewing Angle(H/V) 178/178
• Response Time(G-to-G) N/A
• Color Gamut 72%
• Operation Hour 24/7
• Haze 28%
• Connectivity
• Input
• Video HDMI 2.0 (2) /DVI-D, Display Port 1.2
• HDCP HDCP2.2
• Audio Stereo mini Jack
• USB USB 2.0 x 1
• Output
• Video DP1.2(Loop-out)
• Audio Stereo mini Jack
• External Control RS232C(in/out), RJ45 in
• Power
• Power Supply AC 100 - 240 V, 50/60 Hz
• Power Consumption
• Max[W/h] 220.0
• Typical[W/h] 133.0
• Sleep mode less than 0.5W
• Mechanical Specification
• Dimension (mm)
• Set 1212.2 x 683 x 70.4
• Package 1398 x 844 257
• Weight (kg)
• Set 19.5
• Package 28.6
• VESA Mount (mm) 600 x 400
• Bezel Width (mm) B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
• Operation
• Operating Temperature 0 ℃ ~ 40 ℃ Humidity 10.0 % ~ 80.0 %
• Feature
• Key Features Extreme Narrow Bezel
• Orientation Landscape / Portrait
• Remote Control N/A
• Special Features H/W : ACM Support(Advanced Color Management) Temperature Sensor Video Wall Daisy Chain(10x10) DP 1.2
• Digital Daisy Chain(Supporting UHD Resolution, HDCP support) Clock Battery(168hrs Clock Keeping) S/W : Auto Source
• Switching & Recovery RS232C/RJ45 MDC Button Lock Smart F/W update
• Internal Player Processor N/A
• On-Chip Cache Memory N/A
• Clock Speed N/A
• Main Memory Interface N/A
• Graphics N/A
• Storage (FDM) N/A
• Multimedia N/A
• IO Ports N/A
• Operating System N/A
• Certification
• Safety 60950-1
• EMC Class B
• IP Rating IP5x
• Accessory
• Included Quick Setup Guide Warranty Card Power Cord RS232C(IN) Gender (Stereo to DB-9) Remote Controller + Batteries DP cable
• Optional
• Stand N/A
• Mount WMN-55VD
• Specialty N/A
• Media Player
• Media Player N/A
